Touch Screen  Controls



Quantem Corporation Touch Screen series of controllers consists of interchangeable components that can be designed into a product simply and easily. The result of this will be that the customer can pick the look and feel of the User Interface (UIF) while maintaining only one standard Machine Interface (MIF). The standard MIF contains a Recognized universal input power supply to speed the Agency Certification requirements. For a quick overview, please look at this data sheet.



And for even more flexibility, some models can be used as a "stand alone solution" without the MIF. The stand alone units use a 12 or 24 VAC / VDC input voltage.



Finally, the customization of these products will allow the OEM to attain their specific look and feel for their product line. Custom images, logo's colors, etc. can be designed so that the products show off the brand name recognition.



Series 160 UIF Tactile Data Sheet (pdf format)

General Description

The Series 160 UIF—Tactile Controller offers the user a unique color icon based display along side a 2 x 16 backlit graphics display. The Color FSLCD display will provide icon based control status information to quickly provide the user with control status, while the 2x16 character display works interactively with the user to provide instructions and messages. The controller can interface with a tactile keyboard (shown), membrane keyboard, or capacitive touch interface and rotary push button encoder. There are also 6 enunciator LED’s (shown). The IO is configurable, so in the final application, the controller can be configured to suit the specific needs of the OEM.

The S160 UIF—Tactile interfaces with the Series 160 MIF Board.

 Specifications

Description SERIES 160 TFT 64 COLOR CUSTOM FSLCD DISPLAY WITH OPT. KEYBOARD

P/N 232-00136-01 (Controller)
P/N 232-00137-01 (Optional Keyboard)

Display                 COLOR FSLCD
Display Size         1.9" X 2.9"
Colors                   64

Display                  2x16 Backlit LCD Character

SD Card                 Option

USB                       Yes

I2C                         Yes

Size                       3.125" x 13.50"

Series 160 UIF Touch data sheet (pdf format)

General Description

The Series 160 UIF—Touch Controller offers the user a touch panel interface which is fully customizable for a specific OEM application. The low cost controller less architecture provides for rapid screen refresh while keeping the cost to a minimum. The bright 320 x 240 display has 8 bit color and is 3.2” QVGA.


The S160 UIF Touch interfaces with the Series 160 MIF, so it is feature rich with IO channels.


Description: Series 160 TFT 3.2" QVGA TOUCH SCREEN

P/N 232-00141-01

Display                           3.2" QVGA
Size                                320 x 240
Colors                             8 bit
Landscape                      Yes
LCC DISPLAY                 Yes

Machine I/F Option         232-00138-01

Probe Inputs Resistive     5
Digital Inputs                   5

Service Switches             4
Service LED's                  3

USB                                Yes
I2C                                  Yes

Size                                 3.125" x 13.50"

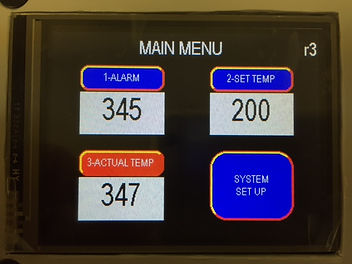

Main Menu

Controller Profile


Series 170



General Description



The Series 170 is an economical high performance temperature control. The user interface is a 3.2” QVGA 8 bit color resistive touch screen. It has three resistive inputs and 3 relay (or open collector) outputs.  Options include: service switches, digital inputs, service LED’s, on-board or external alarm, SD Card, USB, and I2C. The standard version has a simple interface with 3 independent temperature controllers. The unit is fully customizable for numerous applications.



Options Include:

  • Custom software

  • Time and Temperature.

  • USB

  • I2C

  • Alarms



Specifications



Line Voltage:              12V or 24 V factory set
Display:                       3.2” QVGA 320 x 240 8bit color Landscape

                                     (Optional Portrait Mode)
Touch Screen:            4 wire resistive
Output Switching

Device Options:          Up to 3 Relays or OC outputs
Relay Options: (other

ratings may be

available)                      10A @ 120VAC / 10A @ 250VAC
Control Mode:             On/Off  (other options available)
Operating Ambient:    0° to 55°C
Input:                             Up to 3 Probe Inputs
Digital Input:                Up to 2 GPIO pins
Alarm:                           100 db on-board, or external drive.
Probe Options:             NTC/PTC/PRTD
Resolution:                    1degree F
PCB:                                3.160” wide x 6.300” long







Series 180-Resistive



Series 180-Capacitive Touch



The Series 180 is an economical high performance temperature control. The user interface is a 5.7”  resistive touch screen or a 5" or 7" capacitive touch screen. It has resistive inputs and  relay (or open collector) outputs. Options include: service switches, digital inputs, service LED’s, on-board or external alarm, SD Card, USB, and I2C. The unit is fully customizable for numerous applications.







The Series 180 is fully customizable for the user application. Icons, widgets, buttons, graphs, and more may be displayed quickly with the on board graphic accelerator chip and super fast embedded microprocessor with external RAM. The refresh rate is superfast and viewing angles are wide. The colors are bright and rich. Here is a screen shot of a typical UIF. Please contact us for more information on this product.



Specifications



Line Voltage:            12V or 24 V factory set

Display 1:                      5.7” VGA 480 x 640 16bit color Landscape (Optional Portrait Mode)

Touch Screen:           4 wire resistive

Display 2:                      5” VGA 800 x 480 16bit color Landscape (Optional Portrait Mode)

Touch Screen:           capacitive touch screen

Display 3:                      7” VGA 800 x 480 16bit color Landscape (Optional Portrait Mode)

Touch Screen:           capacitive touch screen

Output Switching

Device Options:        Relays or OC outputs

Relay Options:

(other ratings may

be available)              10A @ 120VAC / 10A @ 250VAC

Control Mode:           On/Off  (other options available)

Operating Ambient:  0° to 55°C

Input:                           Up to 8 Probe Inputs

Digital Input:               GPIO pins

Alarm:                          100 db on-board, or external drive.

Probe Options:           NTC/PTC/PRTD

Resolution:                  1 degree F

PCB:                              See data sheet for dimensions

S160 MIF Data Sheet (pdf format)

General Description

The Series 160 MIF is a configurable Machine Interface (MIF) board designed to control a variety of commercial cooking products.


The Series 160 MIF is designed to interface with the Series 160 FSLCD Control, the Series 160 QVGA Touch Panel Control, or the Series 180 VGA Touch Panel Controller.



Specifications

Description:  SERIES 160 POWER SUPPLY AND I/O  BOARD  ASSEMBLY (MIF)
P/N 232-00138-01 (Fully Loaded)
Probe Inputs Resistive       5
Digital Inputs                       5
On Board Relays                 9
OC Relay Drivers                 3
OC Outputs                          3
Service LED's                      12
On Board Alarm              100 db
External Alarm                 Option
Power Supply Universal   85—264 VAC
Power Supply Approvals CE, CSA, EN, UL
Size                                 3.125" x 13.50"
